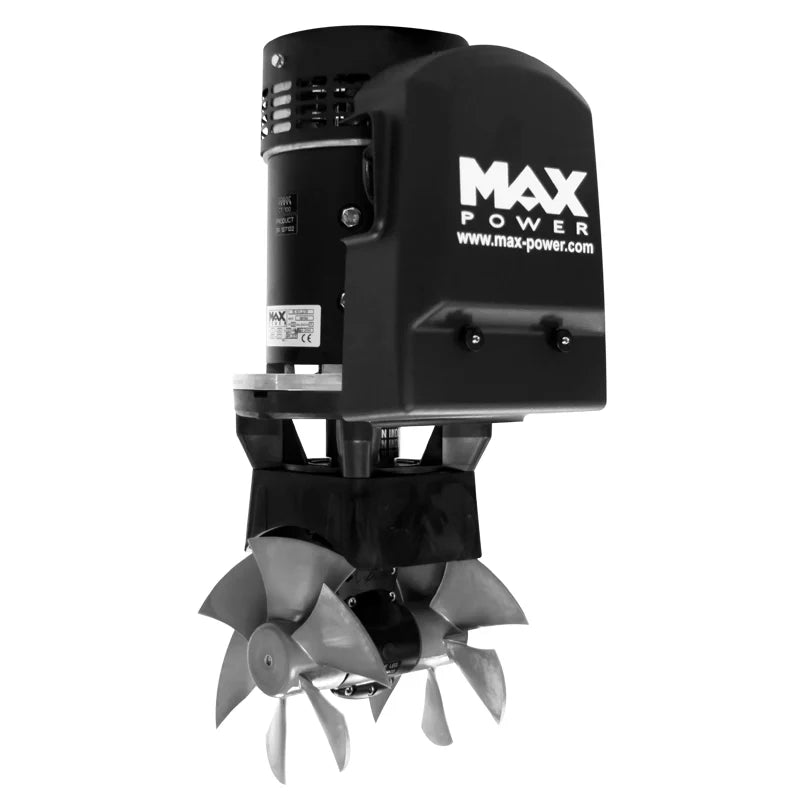

MAX POWER Thruster CT100 (12V)
Quantity:
CT100 Manual
Max Power offers a complete range of 12 / 24V composite electric tunnel thrusters to suit motor yachts & deep footed sailing yachts. Designed for maximum performance and durability, each model is easy to fit, highly cost effective, and integrates a variety of unique features.

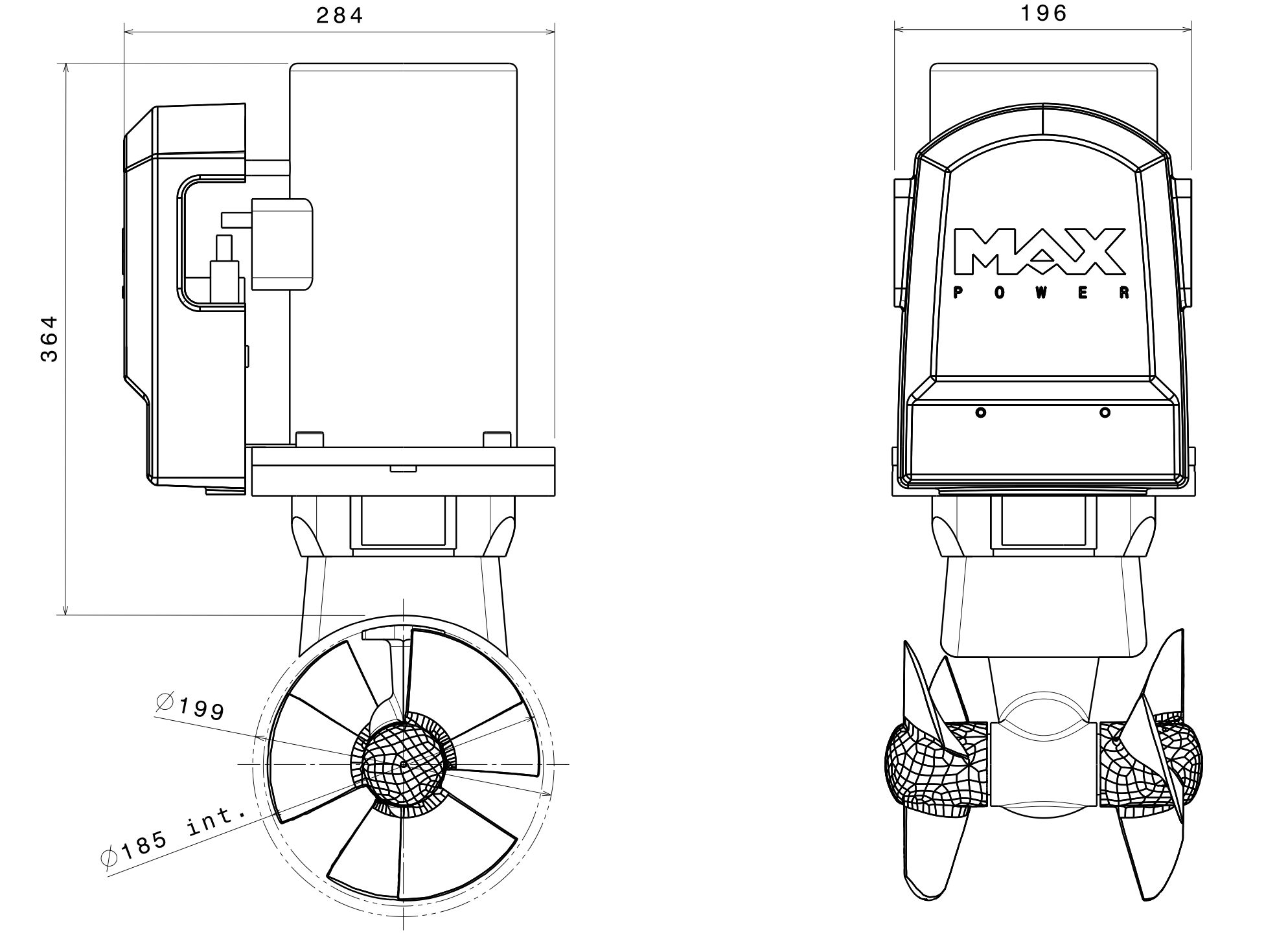

The 12V twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).
The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range
Features
- Patented composite drive legs that are pre-filled with oil and then sealed for life for zero maintenance
- Corrosion free composite drive legs eliminate the need for anodes and offer high manufacturing tolerances
- Case hardened spiro-conical gears guarantee a silent, smooth operation, and a long life span
- High efficiency purpose built DCmotors ensuring outstanding performance and long runtime ratings
- Stainless steel protection caps secure the seals from fishing lines
- Solid copper contact bars guarantee safe & high power connections
- Electronic control boxes for unrivalled safety features
- Safe, high-power connections
- Purpose-built DC contractors are both safe and durable
- Electric control boxes offer unique & unrivalled safety features
CT100 compatible Max Power Accessories, NOT included:
- Battery Isolator, recommended to validate your MAX Power warranty, part number 318400
- 1 x Single Joystick, part number 318202
- 1 x 160 amp Fuse Holder, part number 35017
- 1 x Compatible Fuse, 12 volt part number 35019, 24 volt part number 35021
- Fibreglass tunnel, 125mm diameter, available in lengths from 0.75 - 2.5 metres e.g. 750mm part number 42547
- Cable, available to purchase by the metre, part number 312781
