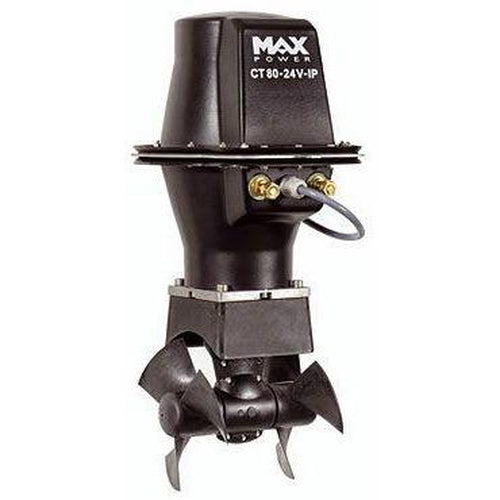

MAX POWER Ignition Protected Tunnel Thruster CT80-IP (12V or 24V)
Title:
Title
Quantity:
CT80-IP Manual
Ignition protected thrusters are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part, this feature provides optimal ignition protection because it doesn't allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.
Available in 12V or 24V, the CT80-IP is perfectly suited to motor boats and deep footed sailing yachts in 30' to 45' size range.

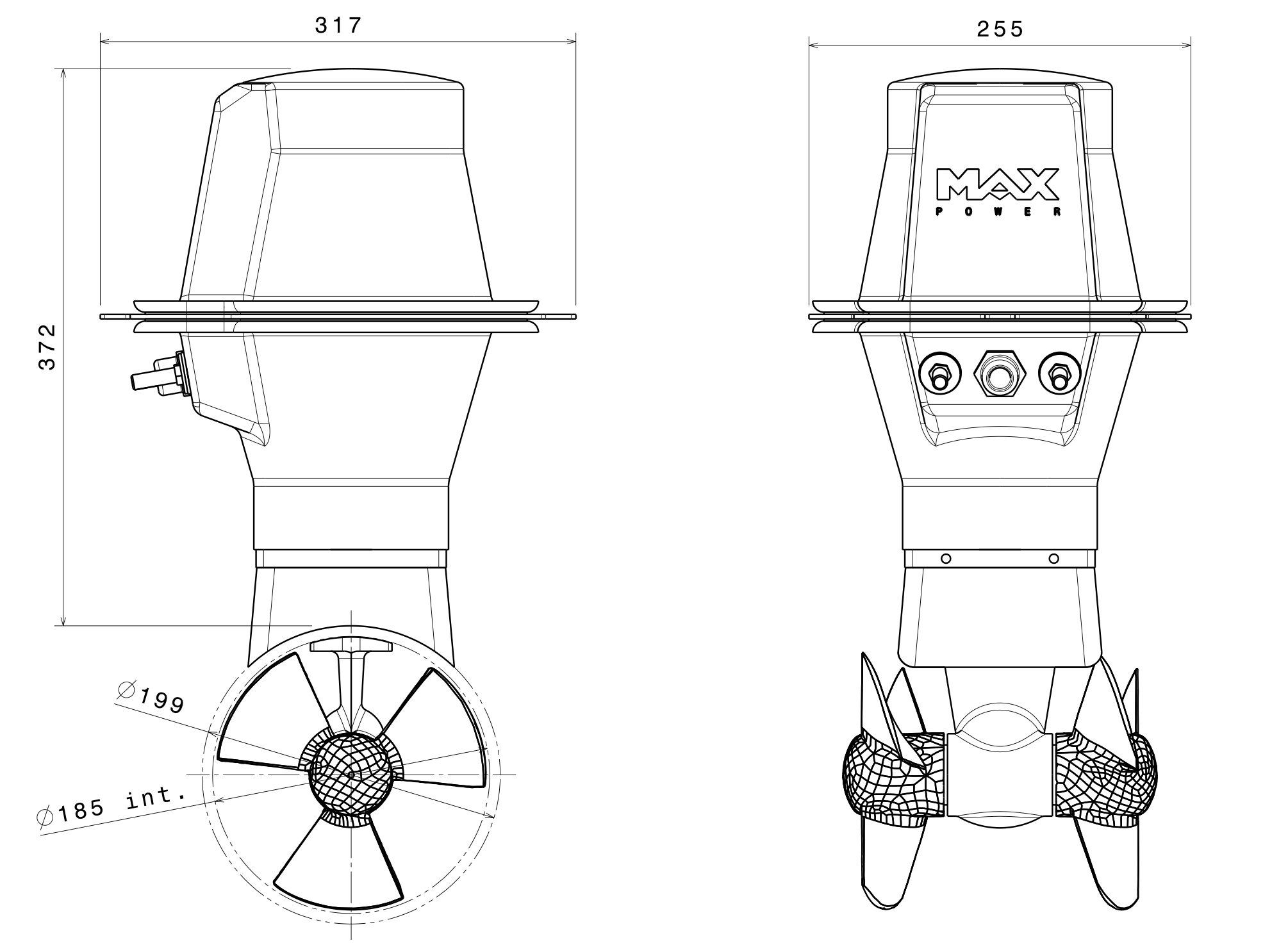

With its 185mm tunnel diameter and thrust rating of up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this is a powerful, yet economic thruster.
Features
- Ignition protected ISO 8846 and water resistant
- Easy to connect to thruster
- Patented composite drive leg
- Zero maintenance
- Case hardened spiro-conical gears
- Line shields
- Purpose built DC motors
- Electronic control boxes for unrivalled safety features
- Safe, high power connections
- Purpose built high specification DC contactors
