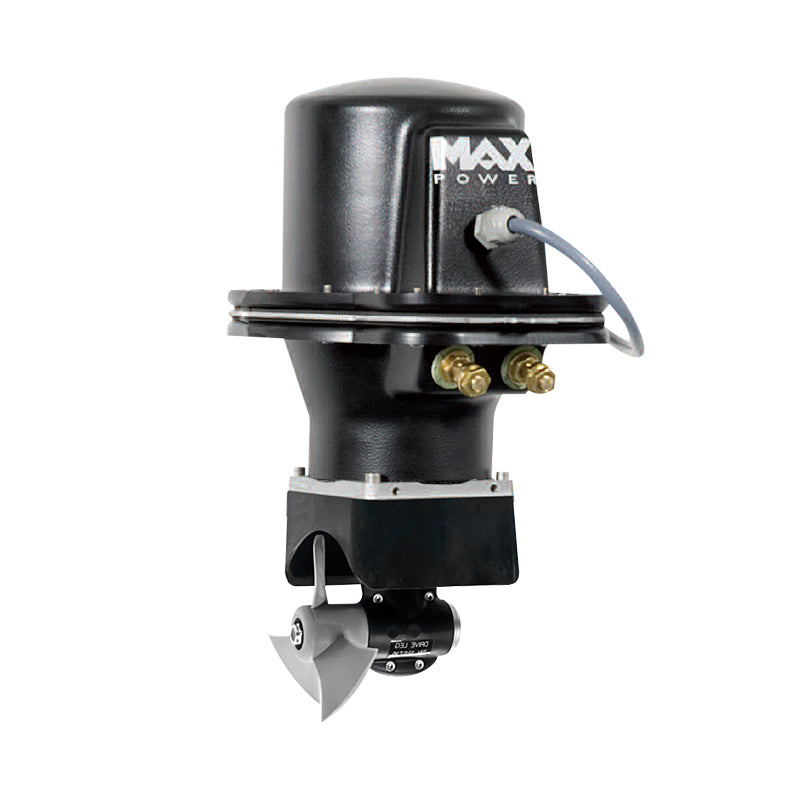

MAX POWER Ignition Protected Tunnel Thruster CT35-IP (12V)

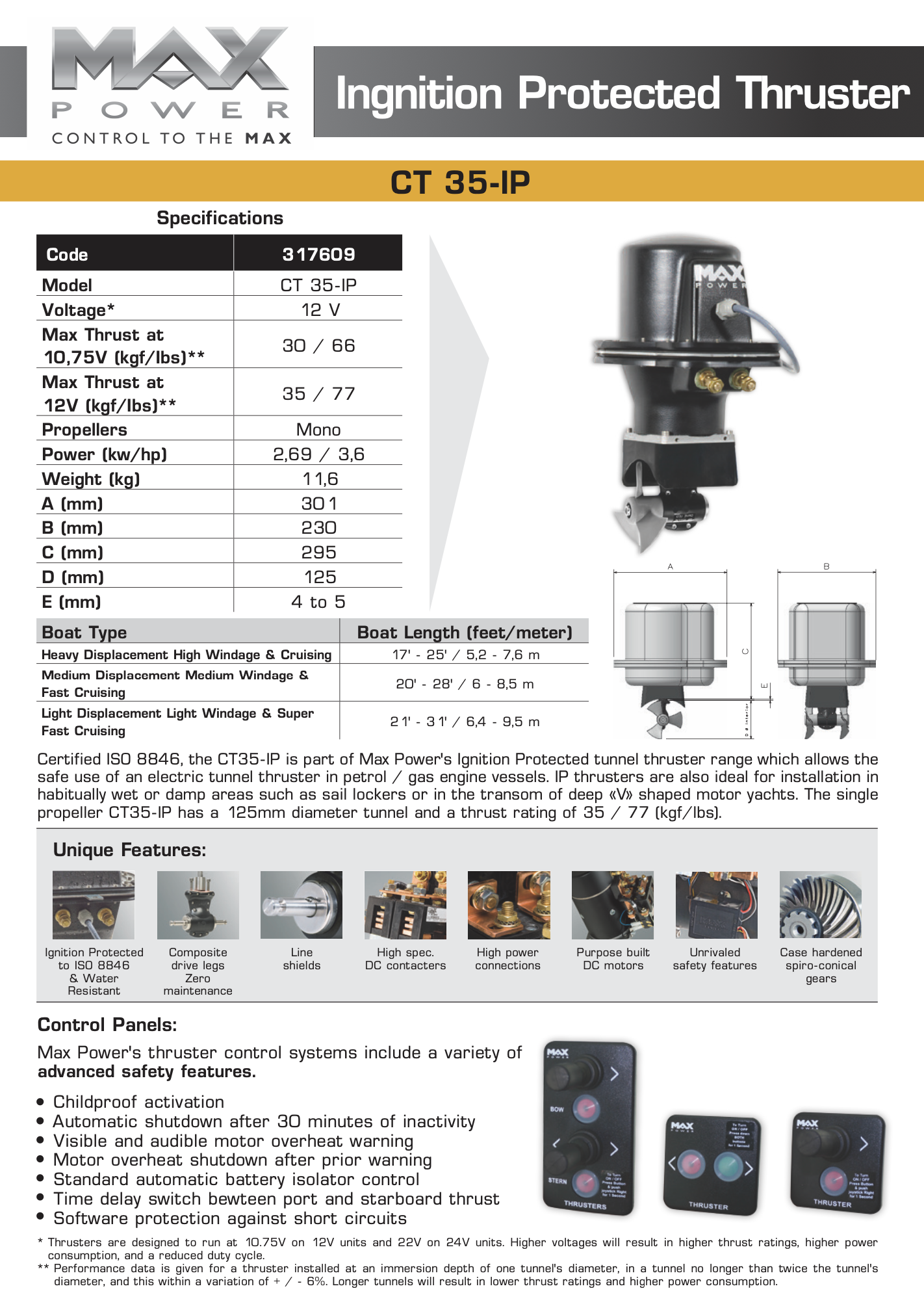

CT35-IP Manual
Ignition protected thrusters are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part, this feature provides optimal ignition protection because it doesn't allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.
The smallest in the Max Power Ignition Protected tunnel thruster range, the CT35-IP is ideally suited to motor boats and deep footed sailing yachts ranging from 17’ to 34'.

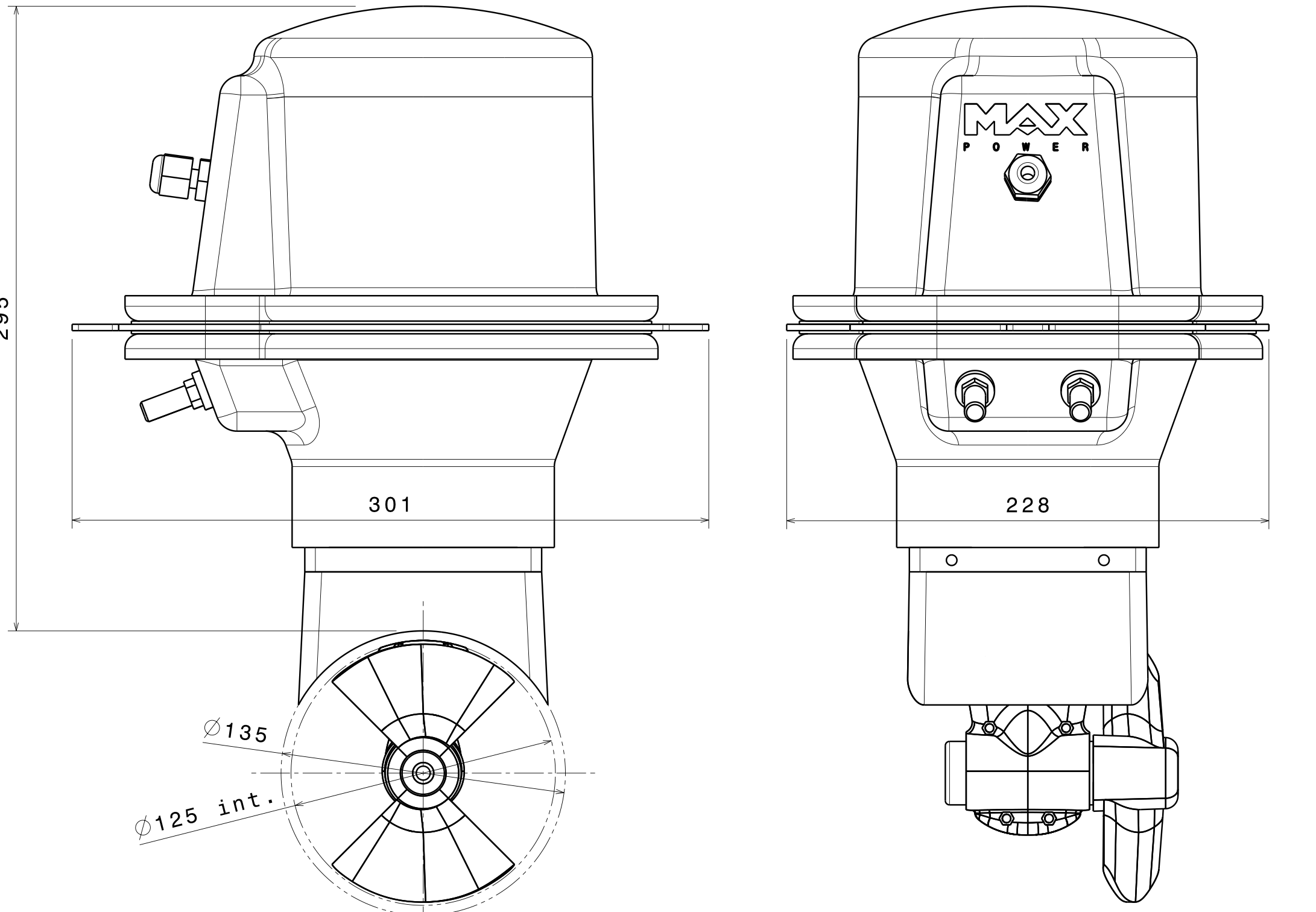

Manufactured using composite materials, the CT35-IP is a single propeller thruster with a 125mm diameter tunnel and thrust rating of up to 35/75 (kg/lbs). Like all Max Power Ignition Protected tunnel thrusters, the CT35-IP is easy to install, maintenance free, and integrates all the unique features common to this range
Features
- Ignition protected ISO 8846 and water resistant
- Easy to connect to thruster
- Patented composite drive leg
- Zero maintenance
- Case hardened spiro-conical gears
- Line shields
- Purpose built DC motors
- Electronic control boxes for unrivalled safety features
- Safe, high power connections
- Purpose built high specification DC contactors
