Johnson Pump

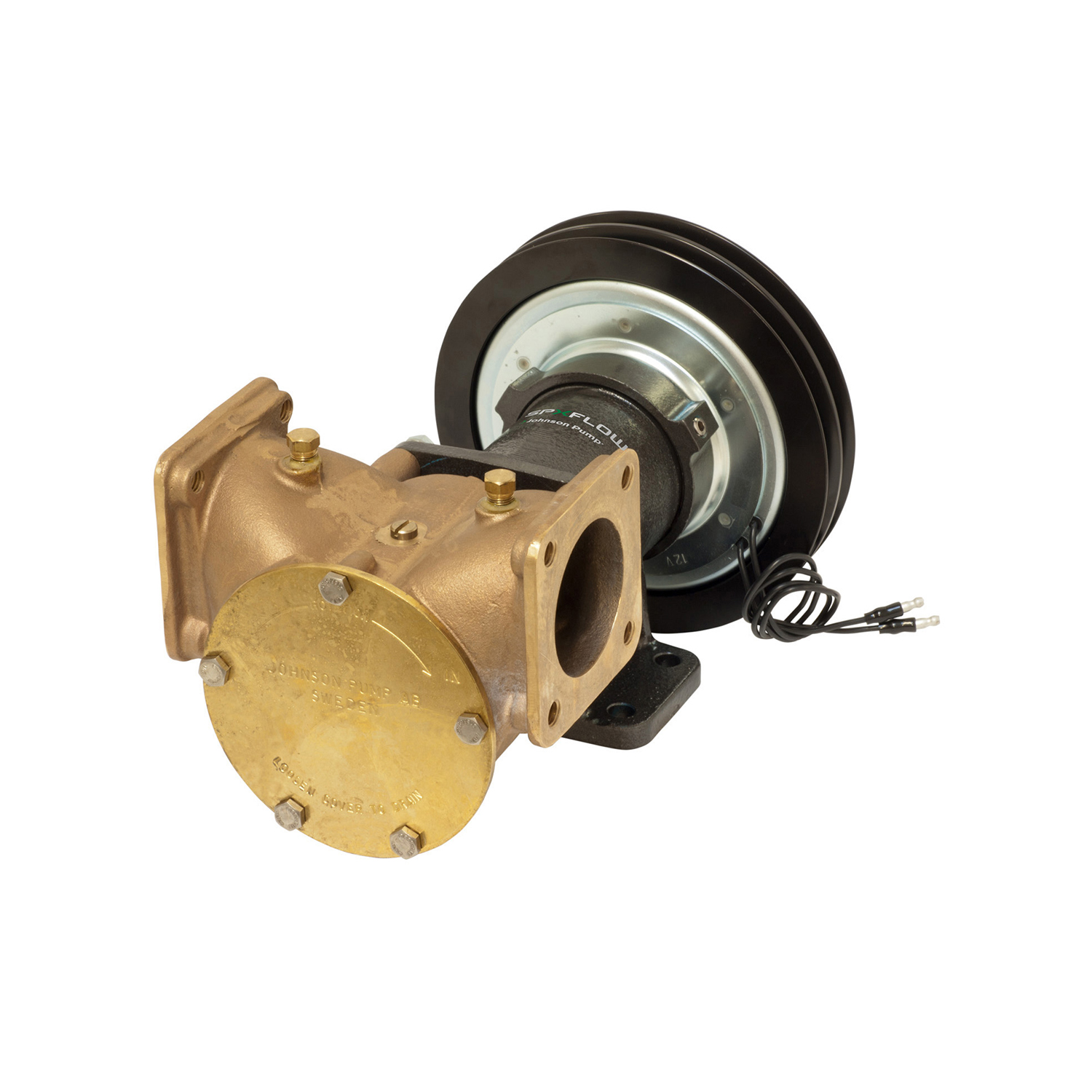

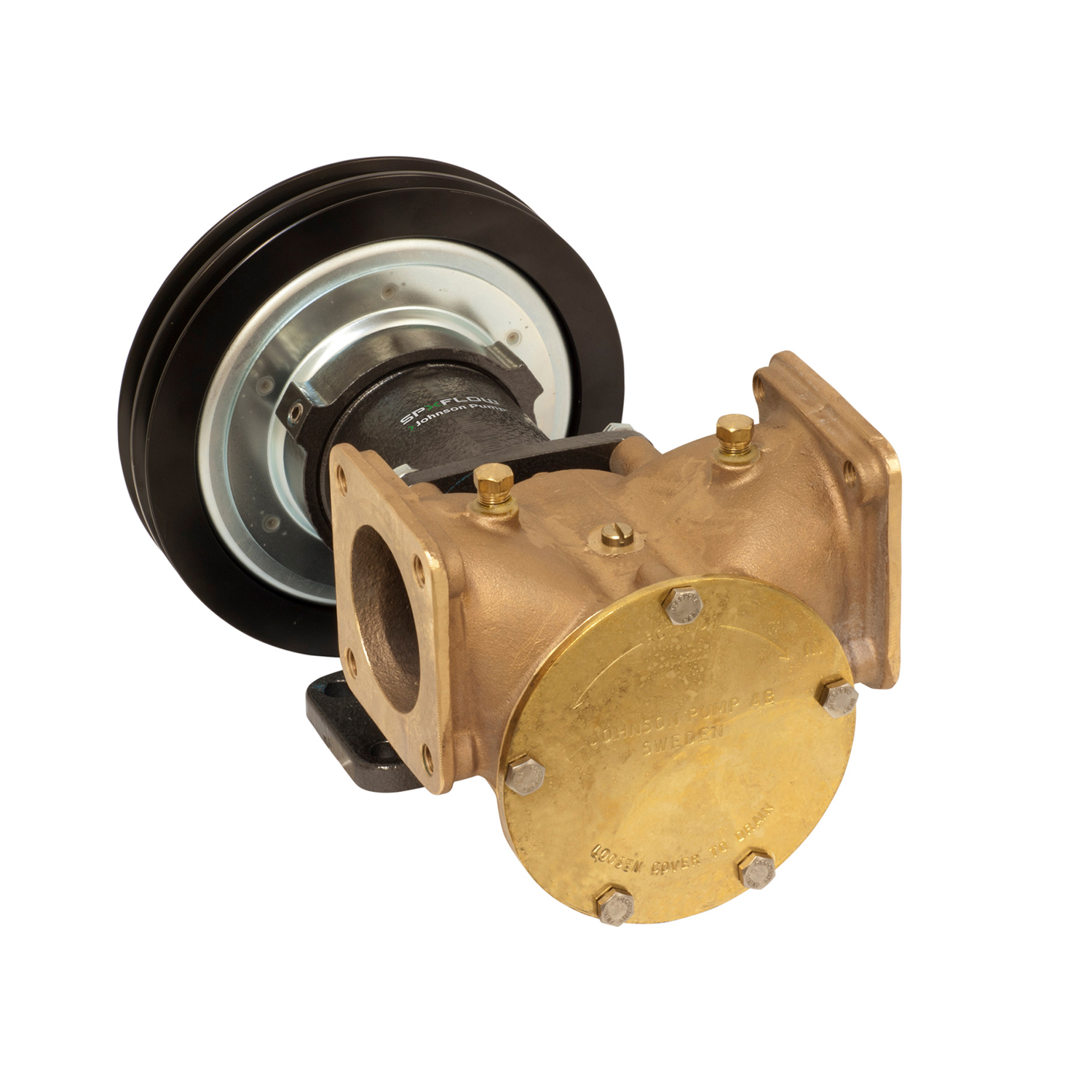

JOHNSON F9B-5600 VF Extra Heavy Duty Electro-Magnetic Clutch Pump
Quantity:
The Heavy-Duty range of multi-purpose bronze pumps are raw water resistant and have a compact design. These pumps are designed for a number of applications onboard and have gained a time-tested reputation for quality and reliability.
With an Electro-Magnetic Clutch, you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
Specifications:
- Pump Body: Bronze
-
Shaft: Stainless steel - The shaft is mounted with permanently lubricated double ball bearings
-
Seal: Mechanical seal
-
Impeller: 09-802B and 09-814B
-
Connection: 2" BSP
- Length: 290mm
- Width: 192mm
- Height: 157mm
-
Weight: 13.2kg
- Driveshaft: 24mm
- Flow Rate: 376LPM @30KPA and 2000RPM
- Includes: 09-46437 clutch fitting kit
- 3 Year Warranty
