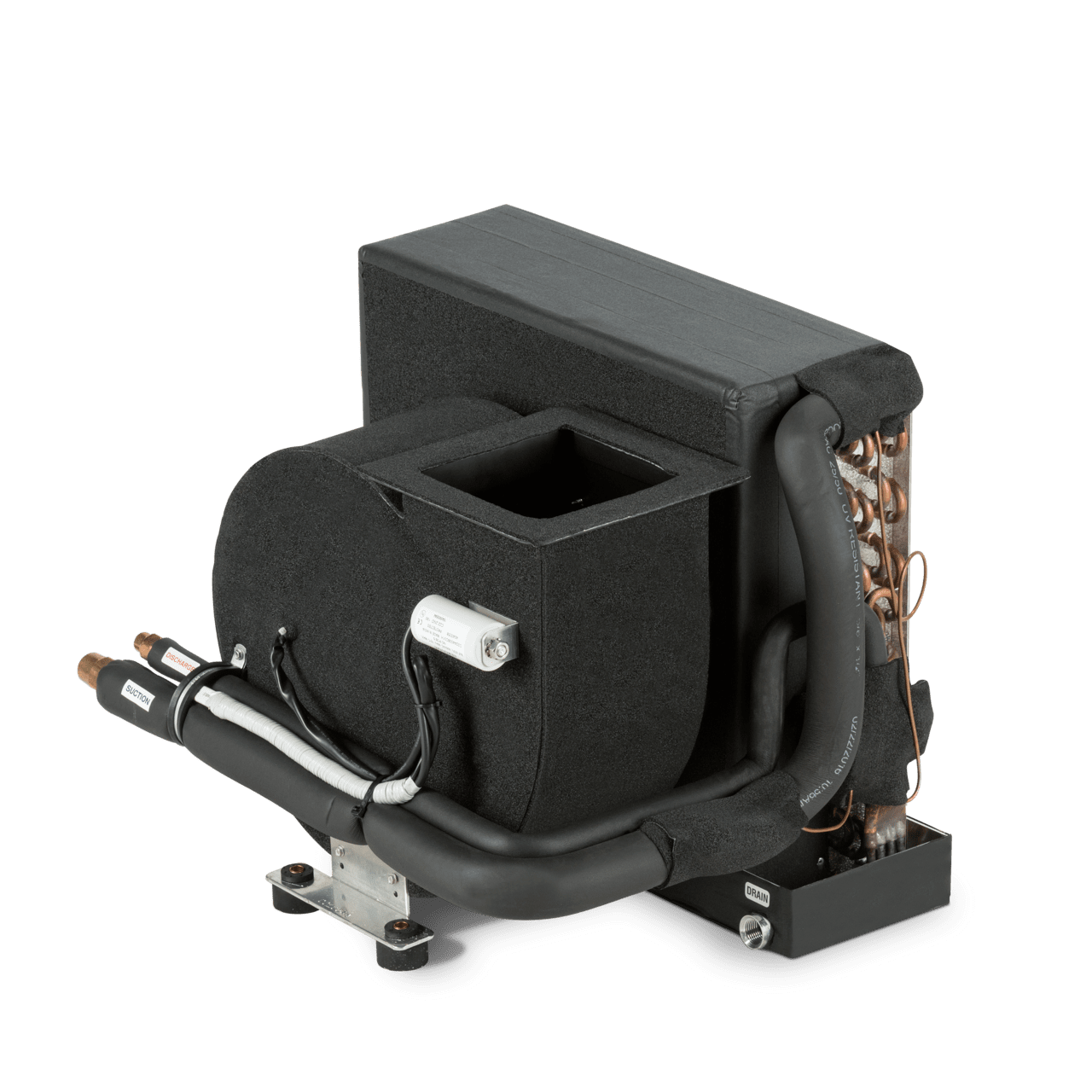

DOMETIC EBE24 Emerald Evaporator Unit 24,000 BTU/h-230v-50/60Hz-R410A-8"MR

The EBE Series was designed for installation low in a closet, cabinet, or other enclosed space, with discharge air ducted to one or more grilles high in the cabin.

Compact EBE split evaporators for boats are draw-through, ductable cooling units with reverse-cycle heating. Featuring a rotatable, high-efficiency permanent split capacitor (PSC) blower in which the motor is concealed. Vibration-isolation mounting is built into each EBE unit to reduce noise and vibration. The PSC blower is supported by a sturdy aluminum bracket with isolation grommets to reduce possible vibration. The blower’s internal motor housing reduces the overall unit depth for easier installation and promotes quieter operation.

Features

• Compact ductable cooling or heating units
• High-velocity (HV) fully-insulated blowers are rotatable
• Insulated condensate pan with anti-slosh, anti-fungal foam lining
• High-efficiency evaporator coil
• Larger blower inlet for increased air flow across the coil
• Blower support bracket with cushioned mounts to reduce noise and vibration
• Increased metal thickness on structural parts for added strength
• Thermal expansion valve for optimal performance over a range of conditions
• Designed to be used with Emerald Series (R-410A) condensers
• Comes with a pre-installed filter
