DOMETIC SANITATION | PARTS LIST

8600 SERIES LOW-PROFILE MASTERFLUSH TOILET

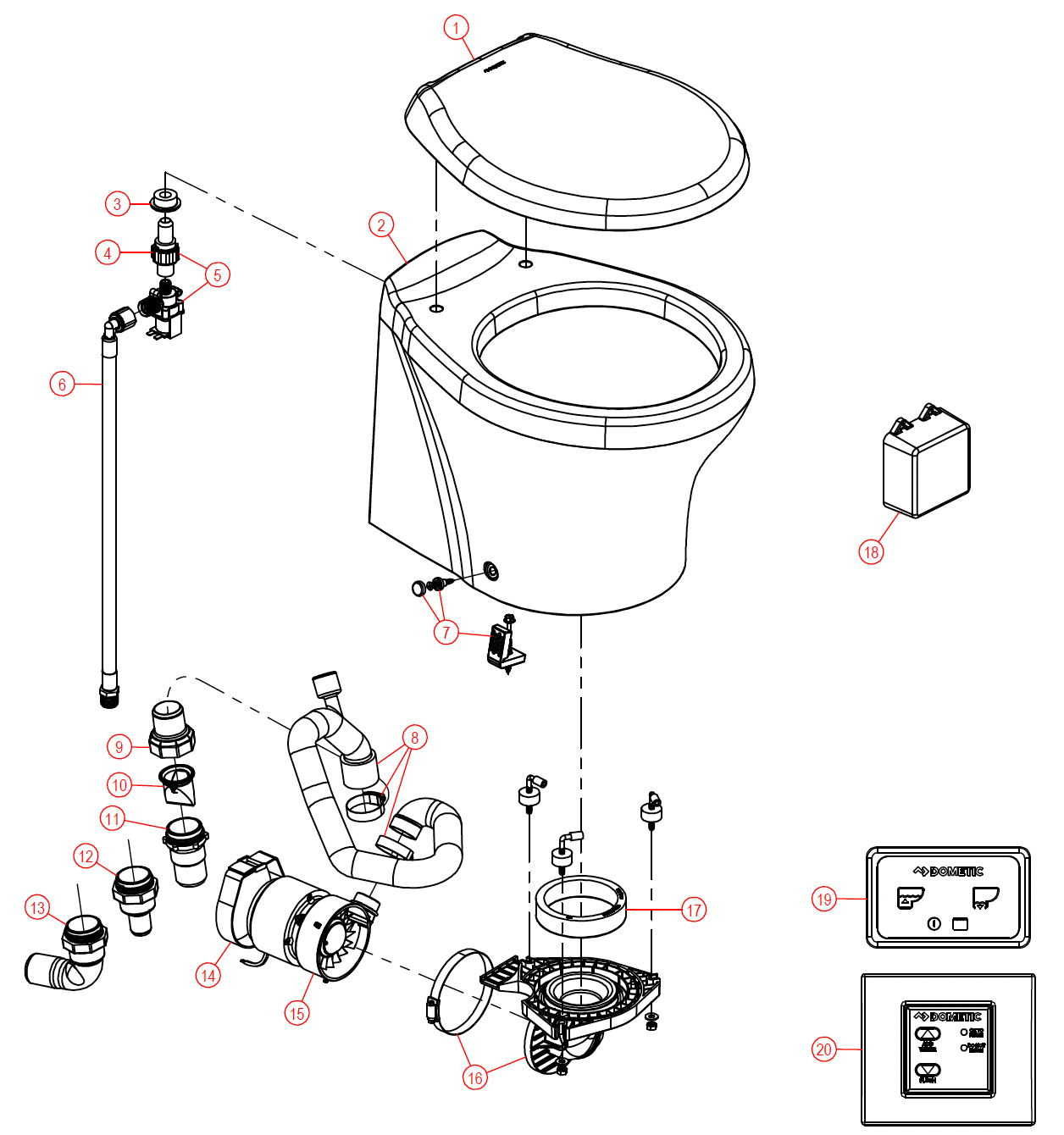

PARTS LIST

1) 385311618 - SEAT/COVER SLOW-CLOSE KIT - WHITE

1) 385311619 - SEAT/COVER SLOW-CLOSE KIT - BONE

2) 385312158 - 4600/8600 LOW-PROFILE BOWL KIT-WHITE

2) 385312159 - 4600/8600 LOW-PROFILE BOWL KIT-BONE

3) 385311164 - 1/2" SEALING GROMMET

4) 385880073 - CHECKVALVE REPLACEMENT

5) 385880074 - WATER VALVE KIT - 12VDC (Includes 3 & 4)

5) 385880075 - WATER VALVE KIT - 24VDC (Includes 3 & 4)

6) 385311547 - WATER SUPPLY HOSE REPLACEMENT

7) 385311463 - BOWL MOUNTING HARDWARE KIT

8) 385312149 - DISCHARGE TUBE REPLACEMENT KIT

9) 385880070 - DISCHARGE TUBE VALVE ADAPTER

10) 385311620 - 1-1/2" CHECK VALVE

11) 385311315 - 1-1/2" VALVE ADAPTER

12) 385880072 - 1" VALVE ADAPTER

13) 385880071 - 1-1/2" VALVE ADAPTER ELBOW

14) 385880083 - MOTOR/PUMP MOUNTING STRAP

15) 385880068 - MOTOR/MACERATOR ASSY - 12VDC

15) 385880069 - MOTOR/MACERATOR ASSY - 24VDC

16) 385312138 - BOWL TRANSITION ADAPTER KIT (Includes mounting hardware & item 17)

17) 385312137 - BOWL ADAPTER SEAL REPLACEMENT

18) 385880085 - CONTROL MODULE 12/24VDC (DBL)

19) 313600021 - TOUCHPAD FLUSH SWITCH - WHITE

19) 313600022 - TOUCHPAD FLUSH SWITCH - BLACK

20) 313409010 - DOMETIC FLUSH CONTROL - GRAY

20) 313409020 - DOMETIC FLUSH CONTROL - WHITE
