DOMETIC SANITATION | PARTS LIST
8100 tall-PROFILE MASTERFLUSH TOILET

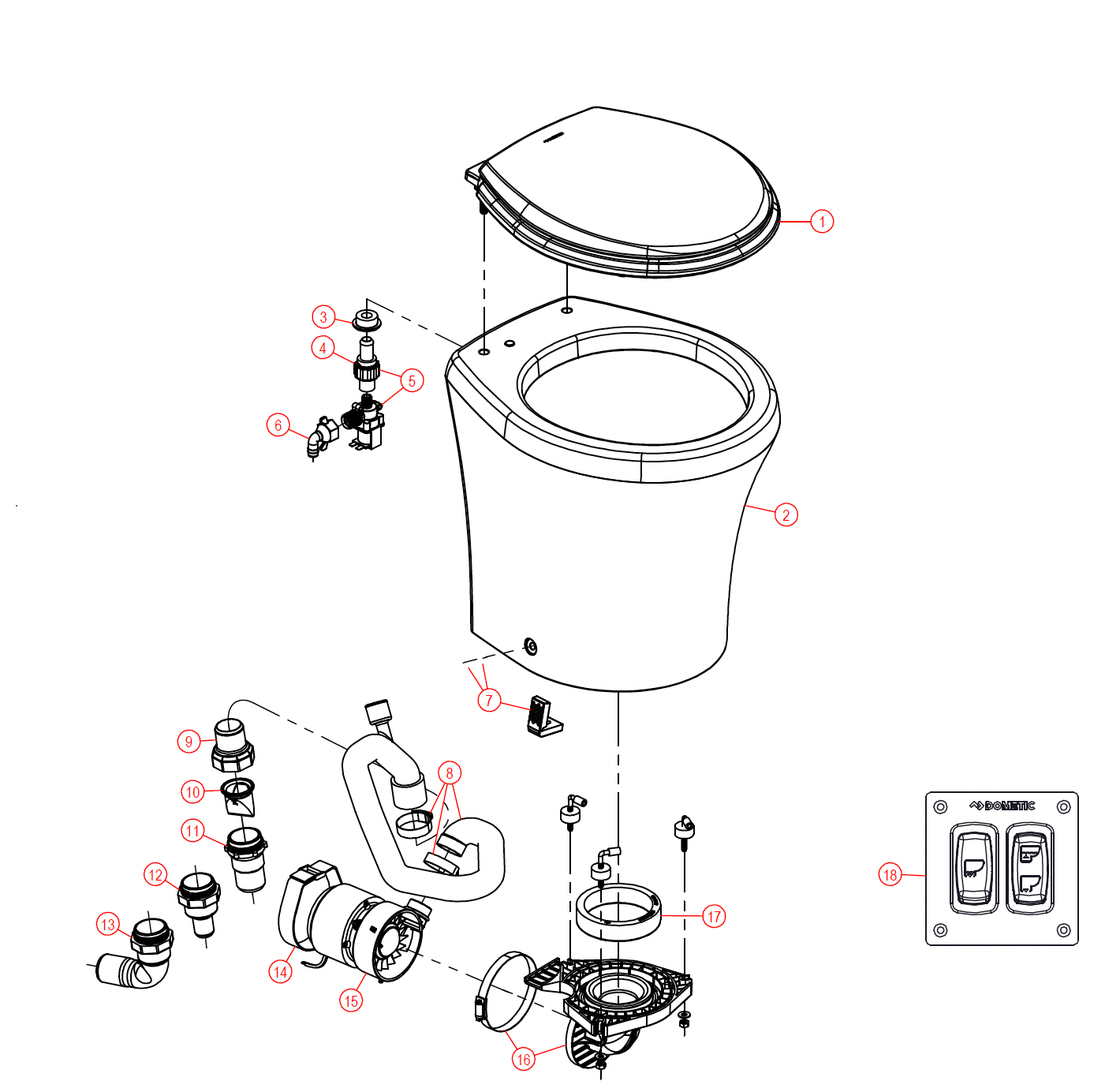

PARTS LIST
2) 385880076 | 8100 TALL SERIES BOWL KIT (WHITE)
2) 385880077 | 8100 TALL SERIES BOWL KIT (BONE)
3) 385311164 | 1/2" SEALING GROMMET
4) 385880073 | CHECKVALVE REPLACMENT
5) 385880074 | WATER VALVE KIT (12VDC) (Includes 3 & 4)
5) 385880075 | WATER VALVE KIT (24VDC) (Includes 3 & 4)
6) 385311717 | KIT, 1/2" SWIVEL ELBOW
7) 385311463 | BOWL MOUNTING HARDWARE KIT
8) 385312149 | DISCHARGE TUBE REPLACEMENT KIT **Includes Clamps & Antisiphion Valve**
9) 385880070 | DISCHARGE TUBE VALVE ADAPTER
10) 385311620 | 1-1/2" CHECK VALVE
11) 385311315 | 1-1/2" VALVE ADAPTER
12) 38588072 | 1" VALVE ADAPTER
13) 385880071 | 1-1/2" VALVE ADAPTER ELBOW
14) 385880083 | MOTOR/PUMP MOUNTING STRAP
15) 385880068 | MOTOR / MACERATOR ASSY (12VDC)
15) 385880069 | MOTOR / MACERATOR ASSY (24VDC)
16) 385312138 | BOWL TRANSITION ADAPTER KIT
17) 385312137 | BOWL ADAPTER SEAL REPLACEMENT
