DOMETIC SANITATION | PARTS LIST

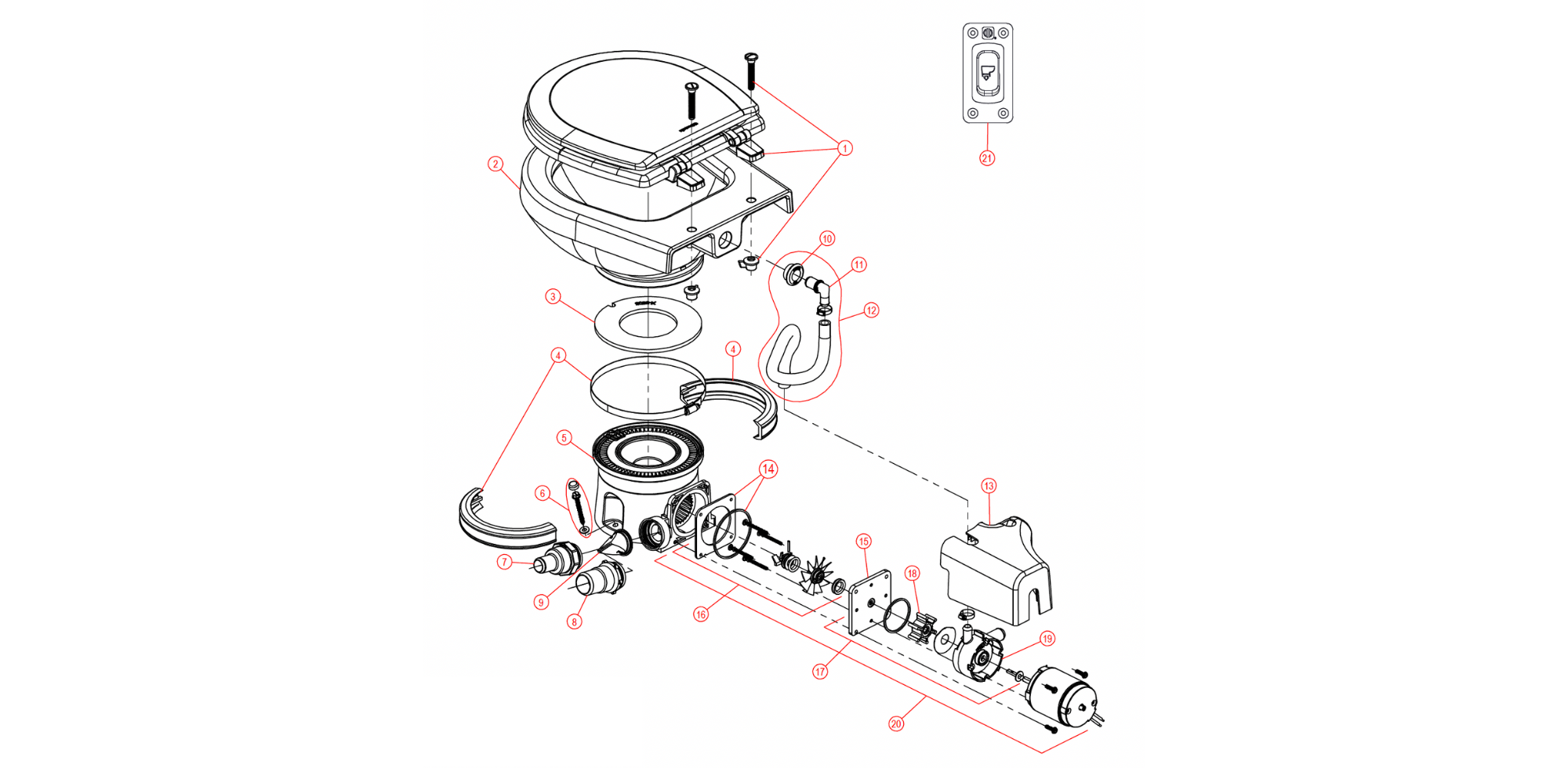

7260 OBRIT SERIES STANDARD TOILET

1) 385344436 - SEAT/COVER - WHITE

1) 385344437 - SEAT/COVER - BONE

2) 385310676 - BOWL KIT - WHITE

2) 385310781 - BOWL KIT - BONE

3) 385311979 - BOWL SEAL

4) 385310025 - BOWL/BASE CLAMP KIT - WHITE

4) 385310048 - BOWL/BASE CLAMP KIT - BONE

5) 385311980 - BASE KIT - WHITE

5) 385311981 - BASE KIT - BONE

6) 385310679 - MOUNTING HARDWARE

7) 385880072 - 1" VALVE ADAPTER

8) 385311315 - 1-1/2" VALVE ADAPTER

9) 385311620 - 1-1/2" CHECK VALVE

10) 385310696 - VACUUM BREAKER COVER - WHITE

10) 385310782 - VACUUM BREAKER COVER - BONE

11) 385316906 - VACUUM BREAKER KIT

12) 385311164 - 1/2" SEALING GROMMET

13) 385312020 - BOWL SUPPLY HOSE KIT - FRESH WATER

14) 385311985 - 7000 SERIES PUMP/MOTOR COVER - WHITE

14) 385311986 - 7000 SERIES PUMP/MOTOR COVER - BONE

15) 385312033 - FLANGE GASKET REPLACEMENT KIT

16) 385311987 - MOTOR MOUNTING PLATE

16) 385311988 - MACERATOR BLADE REBUILD KIT

17) 385311851 - WATER VALVE KIT - 12vdc

17) 385311852 - WATER VALVE KIT - 24vdc

18) 385311988 - MACERATOR BLADE REBUILD KIT

19) 385311992 - WATER VALVE MOUNTING SPACER KIT

20) 385311995 - PUMP/MOTOR 12v REPLACEMENT-COMPLETE

20) 385311996 - PUMP/MOTOR 24v REPLACEMENT-COMPLETE

21) 385311997 - DFS-1F FLUSH SWITCH PANEL

22) 385311998 - DFS-2F FLUSH SWITCH PANEL

23) 385311702 - DFST FLUSH SWITCH PANEL
