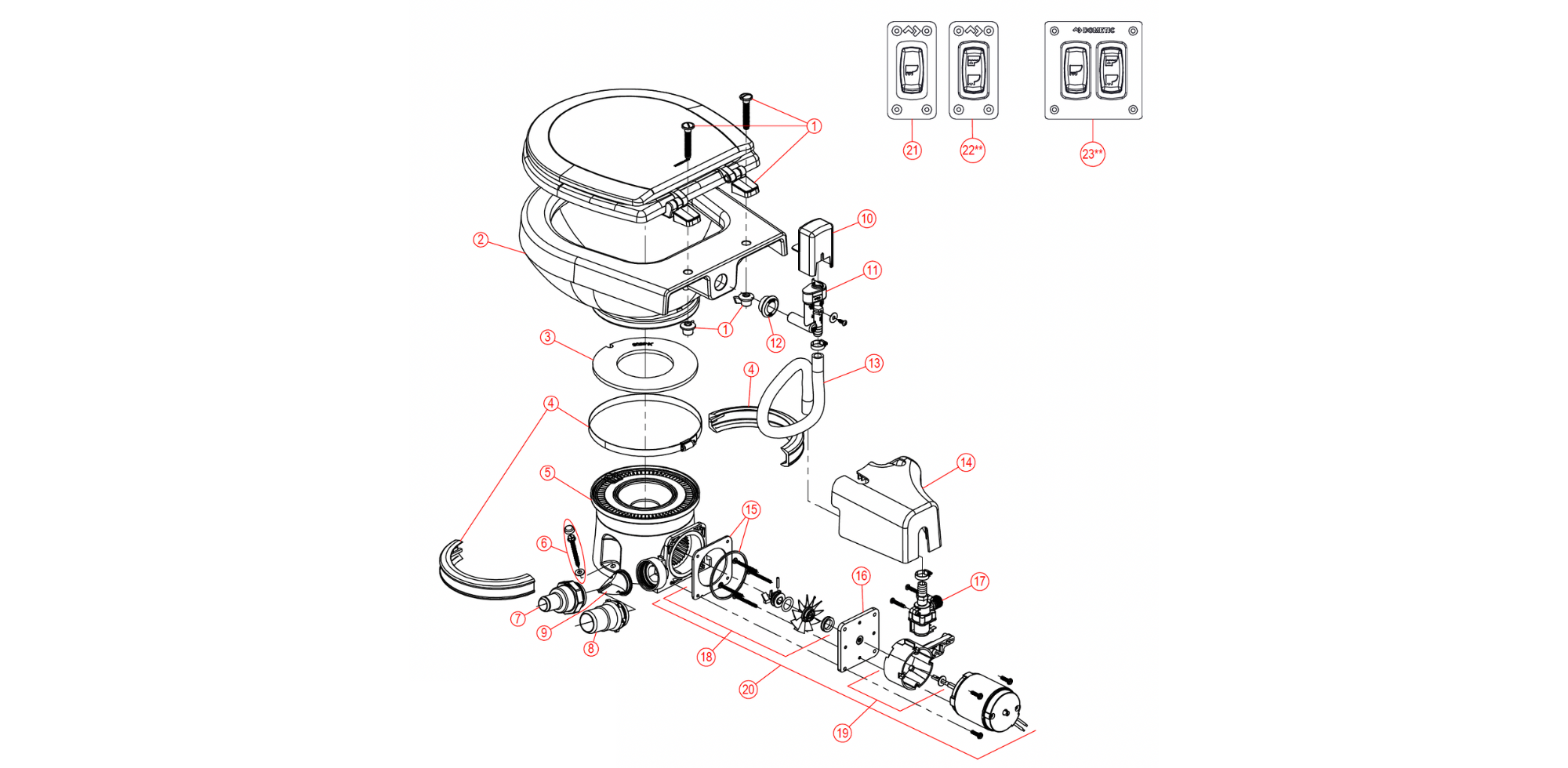

DOMETIC SANITATION | PARTS LIST

7220 OBRIT SERIES STANDARD TOILET

1) 385343829 - SEAT/COVER - WHITE

1) 385343831 - SEAT/COVER - BONE

2) 385311079 - BOWL KIT - WHITE

2) 385311080 - BOWL KIT - BONE

3) 385311979 - BOWL SEAL

4) 385310025 - BOWL/BASE CLAMP KIT - WHITE

4) 385310048 - BOWL/BASE CLAMP KIT - BONE

5) 385311980 - BASE KIT - WHITE

5) 385311981 - BASE KIT - BONE

6) 385310679 - MOUNTING HARDWARE

7) 385311463 - BOWL MOUNTING HARDWARE KIT

8) 385311315 - 1-1/2" VALVE ADAPTER

9) 385311620 - 1-1/2" CHECK VALVE

10) 385311164 - 1/2" SEALING GROMMET

11) 385311456 - BARBED CHECK VALVE REPLACEMENT (Includes item 10)

12) 385311984 - BOWL SUPPLY HOSE KIT - FRESH WATER (Includes 10, 11 & Clamps)

13) 385311985 - 7000 SERIES PUMP/MOTOR COVER - WHITE

13) 385311986 - 7000 SERIES PUMP/MOTOR COVER - BONE

14) 385312033 - FLANGE GASKET REPLACEMENT KIT

15) 385311987 - MOTOR MOUNTING PLATE

15) 385880069 - MOTOR/MACERATOR ASSY - 24VDC

16) 385311851 - WATER VALVE KIT - 12vdc

16) 385311852 - WATER VALVE KIT - 24vdc

17) 385311988 - MACERATOR BLADE REBUILD KIT

18) 385311992 - WATER VALVE MOUNTING SPACER KIT

19) 385311995 - PUMP/MOTOR 12v REPLACEMENT

19) 385311996 - PUMP/MOTOR 24v REPLACEMENT

20) 385311997 - DFS-1F FLUSH SWITCH PANEL

21) 385311998 - DFS-2F FLUSH SWITCH PANEL

22) 385311702 - DFST FLUSH SWITCH PANEL
